Teledyne e2v enhances support for space applications

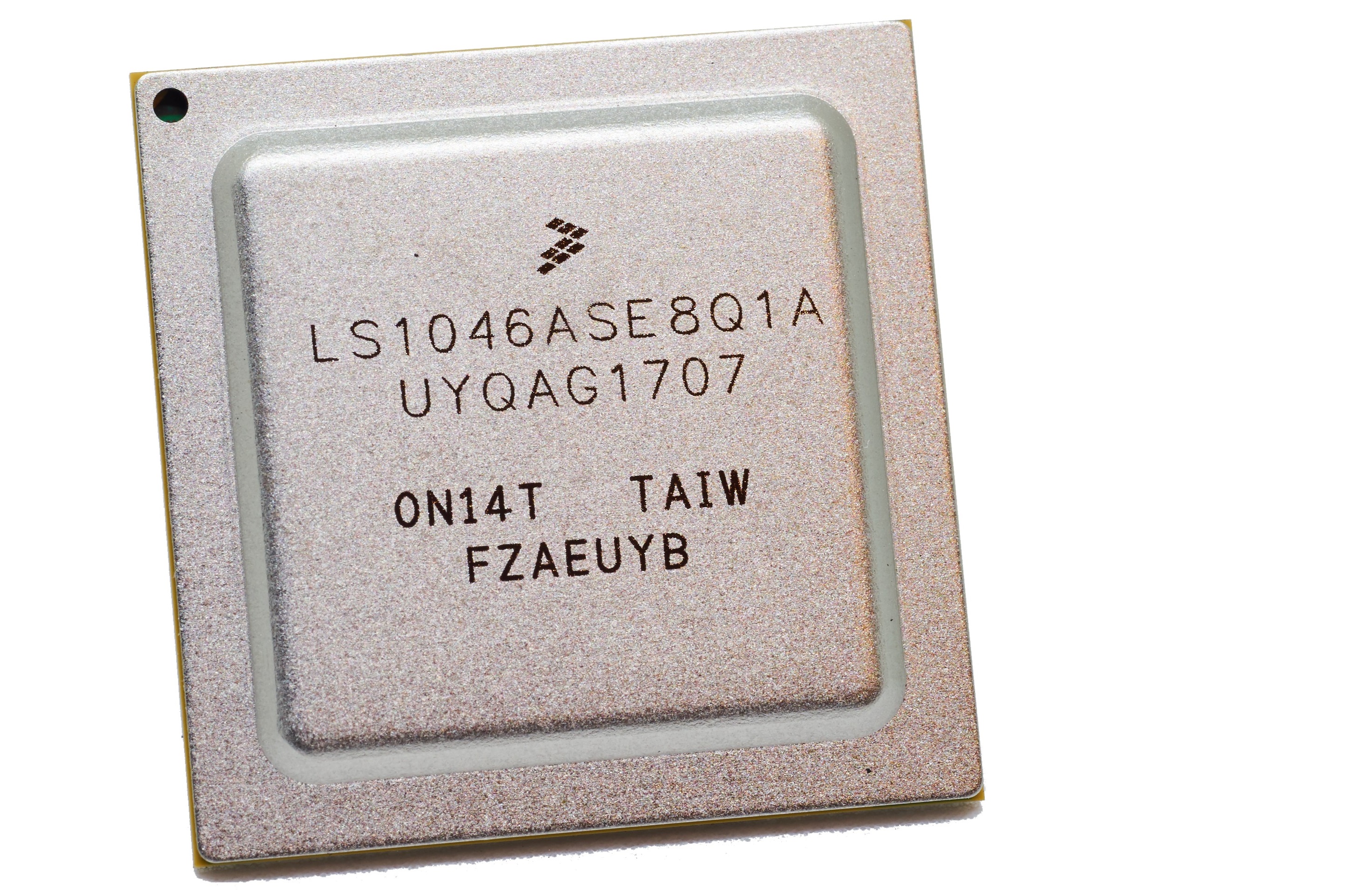

Above:
The LS1046-space.
Courtesy Teledyne e2v
Targeting compute intensive space applications, including high-throughput satellites, data compression, as well as artificial intelligence and imaging, this processor outperforms existing alternatives by a factor of 30x. This timely addition to Teledyne e2v’s portfolio is ready to support a myriad of new space applications.
Benefits of the LS1046-Space for space applications
The LS1046-Space processor blends minimal power consumption and extreme data processing, extending edge compute performance to the smallest form factors. It especially suits deployment in power constrained Cubesat and Microsatellite platforms requiring an advanced data path design and access to multiple integrated peripherals.
Thomas Guillemain, Marketing & Business Development Manager for digital products said: "By using the LS1046-Space, our customers gain immediate access to the highest performance space-grade, edge computing platform available. With its advanced processing capabilities, powerful feature set, and ease of use and implementation in Space systems - it is an important enabler for artificial intelligence and machine learning (AI and ML). It especially suits future, low earth orbit (LEO) operations."
Clocked at up to 1.8 GHz, Teledyne e2v’s 64-bit LS1046-Space processor delivers 30k DMIPs. Moreover, a fast, 2.1 GT/s, 64-bit DDR4 SDRAM memory controller with embedded 8-bit error corrected code (ECC) is provided, plus a 2MB L2 cache shared across the four ARM cores. L1 and L2 caches also benefit from ECC-protection, providing a high degree of in-flight immunity to data corruption.
This high-reliability processor is further enhanced with a wide range of embedded interfaces - including 10 Gbit Ethernet, three PCI-Express (PCIe) v.3.0 lanes, SPI, I2C, and multiple UARTs. The device is supplied in a compact 23 x 23 mm, 780-ball BGA package.
Qualified for operation in the most demanding space environments, the LS1046-Space features a wide operating temperature range from -55 to 125 ⁰C. It also achieves 100 krad total ionizing dose tolerance. Furthermore, immunity to single event latch-up (SEL) and upsets (SEU) is being validated in qualification. The product is qualified up to NASA level 1.
