University of Glasgow engineers test self-eating rocket

University of Glasgow engineers have built and fired the first unsupported ‘autophage’ rocket engine which consumes parts of its own body for fuel.

Image courtesy University of Glasgow

New developments on a nearly century-old concept for a ‘self-eating’ rocket engine capable of flight beyond the Earth’s atmosphere could help the UK take a bigger bite of the space industry.

The design of the autophage engine - the name comes from the Latin word for ‘self-eating’ - has several potential advantages over conventional rocket designs.

Advertisement
ODU RT 2

The engine works by using waste heat from combustion to sequentially melt its own plastic fuselage as it fires. The molten plastic is fed into the engine’s combustion chamber as additional fuel to burn alongside its regular liquid propellants.

This means that an autophage vehicle would require less propellant in onboard tanks, and the mass freed up could be allocated to payload instead. The consumption of the fuselage could also help avoid adding to the problem of space debris – discarded waste that orbits the Earth and could hamper future missions.

Overall, the greater efficiency could help autophage rockets take a greater payload into space compared to a conventional rocket of the same mass. They could, for example, take tiny ‘nanosatellites’ into space directly without having to share space on more expensive conventionally-fuelled rockets.

The concept of a self-eating rocket engine was first proposed and patented in 1938. However, no autophage engine designs were fired in a controlled manner until a research partnership between the University of Glasgow and Dnipro National University in Ukraine achieved this milestone in 2018.

Now, with support from Kingston University, the Glasgow engineers have demonstrated that more energetic liquid propellants can be used, and that the plastic fuselage can withstand the forces required to feed it into the engine without buckling. These are essential steps in developing a viable flight concept.

The team’s design developments are being showcased this week as a paper presented at the international AIAA SciTech Forum in Orlando, Florida.

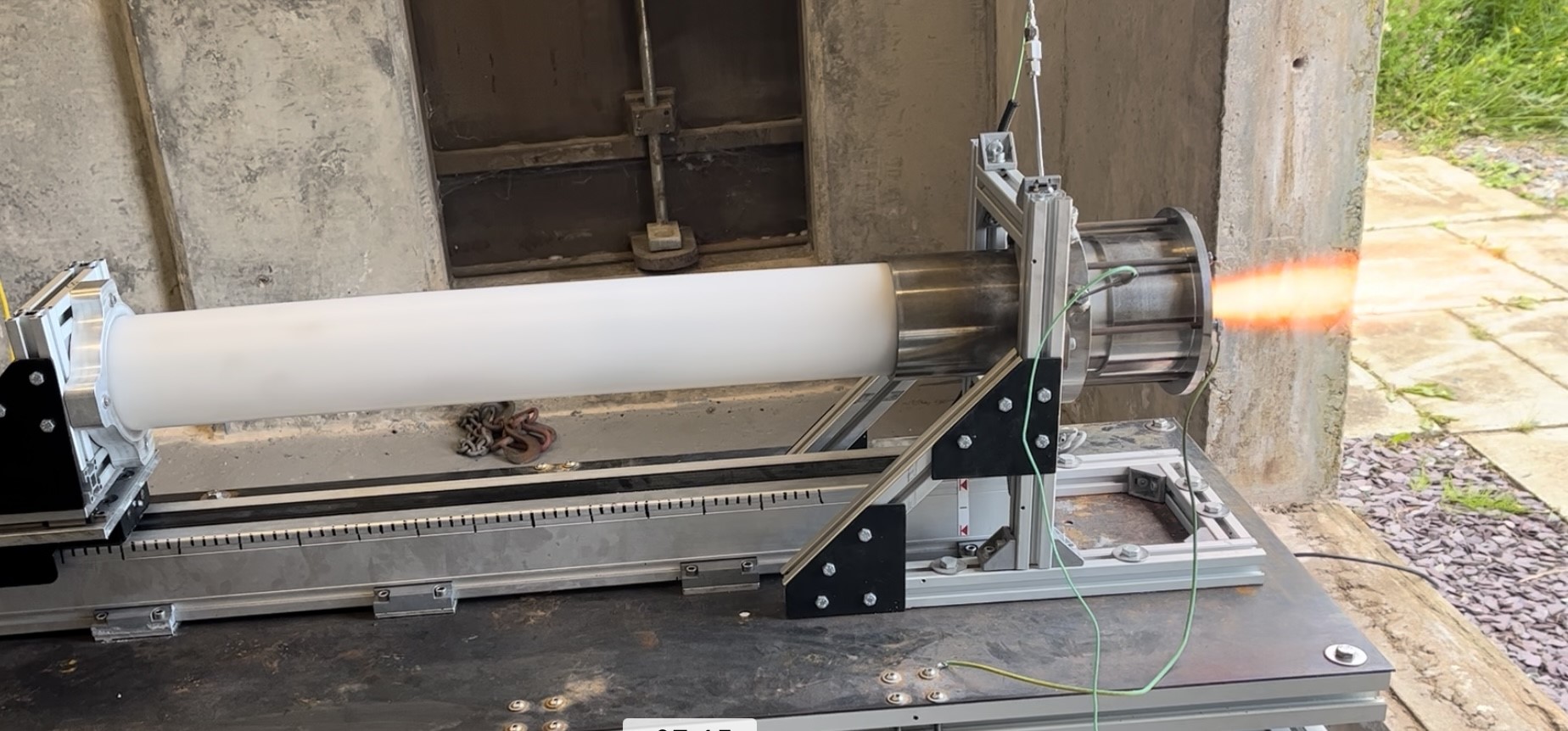

In the paper, the team describe how they successfully test-fired their Ouroborous-3 autophage engine, producing 100 newtons of thrust in a series of controlled experiments. The test fires were conducted at the MachLab facility at Machrihanish Airbase.

The Ouroborous-3 uses high-density polyethylene plastic tubing as its autophagic fuel source, burning it alongside the rocket’s main propellants – a mix of gaseous oxygen and liquid propane.

The tests showed that the Ourobourous-3 is capable of stable burn - a key requirement for any rocket engine - throughout the autophage stage, with the plastic fuselage supplying up to one-fifth of the total propellant used.

The tests also showed that the rocket’s burn could be successfully controlled, with the team demonstrating its ability to be throttled, restarted and pulsed in an on/off pattern. All of these abilities could help future autophage rockets control their ascent from the launchpad into orbit.

Professor Patrick Harkness, of the University of Glasgow’s James Watt School of Engineering, led the development of the Ourouboros-3 autophage engine. He said: “These results are a foundational step on the way to developing a fully-functional autophage rocket engine. Those future rockets could have a wide range of applications which would help advance the UK’s ambitions to develop as a key player in the space industry.

Advertisement
ODU RT

“A conventional rocket’s structure makes up between five and 12% of its total mass. Our tests show that the Ouroborous-3 can burn a very similar amount of its own structural mass as propellant. If we could make at least some of that mass available for payload instead, it would be a compelling prospect for future rocket designs.”

Postgraduate researcher Krzysztof Bzdyk, of the James Watt School of Engineering, is the paper’s corresponding author. He said: “Getting to this stage involved overcoming a lot of technical challenges but we’re delighted by the performance of the Ourouboros-3 in the lab.

“From here, we’ll begin to look at how we can scale up autophage propulsion systems to support the additional thrust required to make the design function as a rocket.”



Development of the team’s autophage engine will continue with the support of new funding from the UK Space Agency (UKSA) and the Sciences and Technology Facilities Council (STFC), part of UK Research and Innovation (UKRI).

The autophage engine is one of 23 space technology projects recently selected to share in £4 million from UKSA and STFC. The Glasgow team received £290,000 to help establish further pilot testing of the prototype engine.

Dr Paul Bate, CEO of the UK Space Agency, said:  “One of the key ways we catalyse investment into the UK’s growing space sector is by backing innovations in emerging areas of space technology. The University of Glasgow’s impressive work towards an autophage engine is an example of one which has great potential to meet the growing global appetite for developments in the efficiency and sustainability of rocket propulsion.”

Jack Tufft, a postgraduate researcher at the James Watt School of Engineering, is a co-author of the paper. He said: “We’re really excited by the potential of the Ouroboros-3, and this further funding will help us move forward with exploring new developments and refinements to our design. Our aim is to bring the autophage engine closer to a test launch, which will help us develop our design for future generations of autophage rockets.”

The team’s paper, titled ‘Investigation of the Operating Parameters and Performance of an Autophage, Hybrid Rocket Propulsion System’ will be presented at the AIAA SciTech Forum on Wednesday 10 January.

The research was supported by funding from the UK Ministry of Defence and the Science and Technology Facilities Council.



Advertisement
L3Harris LB May IAMD L3Harris LB May IAMD
Hughes Europe expands into defence and government sectors

Defence Security Space

Hughes Europe expands into defence and government sectors

12 June 2024

Hughes Europe has announced its strategic expansion into the military, defence and government sectors across pan-European nations, with launch of Konnect VHTS Services in collaboration with Telespazio.

Cognizant acquires Belcan

Aerospace Defence Security Space

Cognizant acquires Belcan

11 June 2024

Digital engineering and data specialist Cognizant, has signed a definitive agreement to acquire Belcan, LLC, supplier of Engineering Research & Development (ER&D) services, for approximately $1.3 billion in cash and stock, subject to customary adjustments.

Airbus awarded Yahsat

Space

Airbus awarded Yahsat's Al Yah 4 and Al Yah 5 satellites contract

10 June 2024

Al Yah Satellite Communications Company PJSC (Yahsat) announced today that it has contracted Airbus Defence and Space, to provide its new geostationary telecommunications satellites, Al Yah 4 (AY4) and Al Yah 5 (AY5).

NASA awards advance technologies for Habitable Worlds mission

Space

NASA awards advance technologies for Habitable Worlds mission

3 June 2024

NASA has announced that it has selected three industry proposals to help develop technologies for future large space telescopes and plan for the agency's Habitable Worlds Observatory mission concept, which could be the first space telescope designed to search for life outside our solar system.

Advertisement
Marshall RT 2
BAE Systems selected to build OCX for NOAA’s GeoXO

Space

BAE Systems selected to build OCX for NOAA’s GeoXO

3 June 2024

BAE Systems has been selected to build the Ocean Color Instrument (OCX) for the National Oceanic and Atmospheric Administration’s (NOAA) Geostationary Extended Observations (GeoXO) satellite constellation.

Airbus delivers first Sentinel-5 instrument for satellite integration

Space

Airbus delivers first Sentinel-5 instrument for satellite integration

31 May 2024

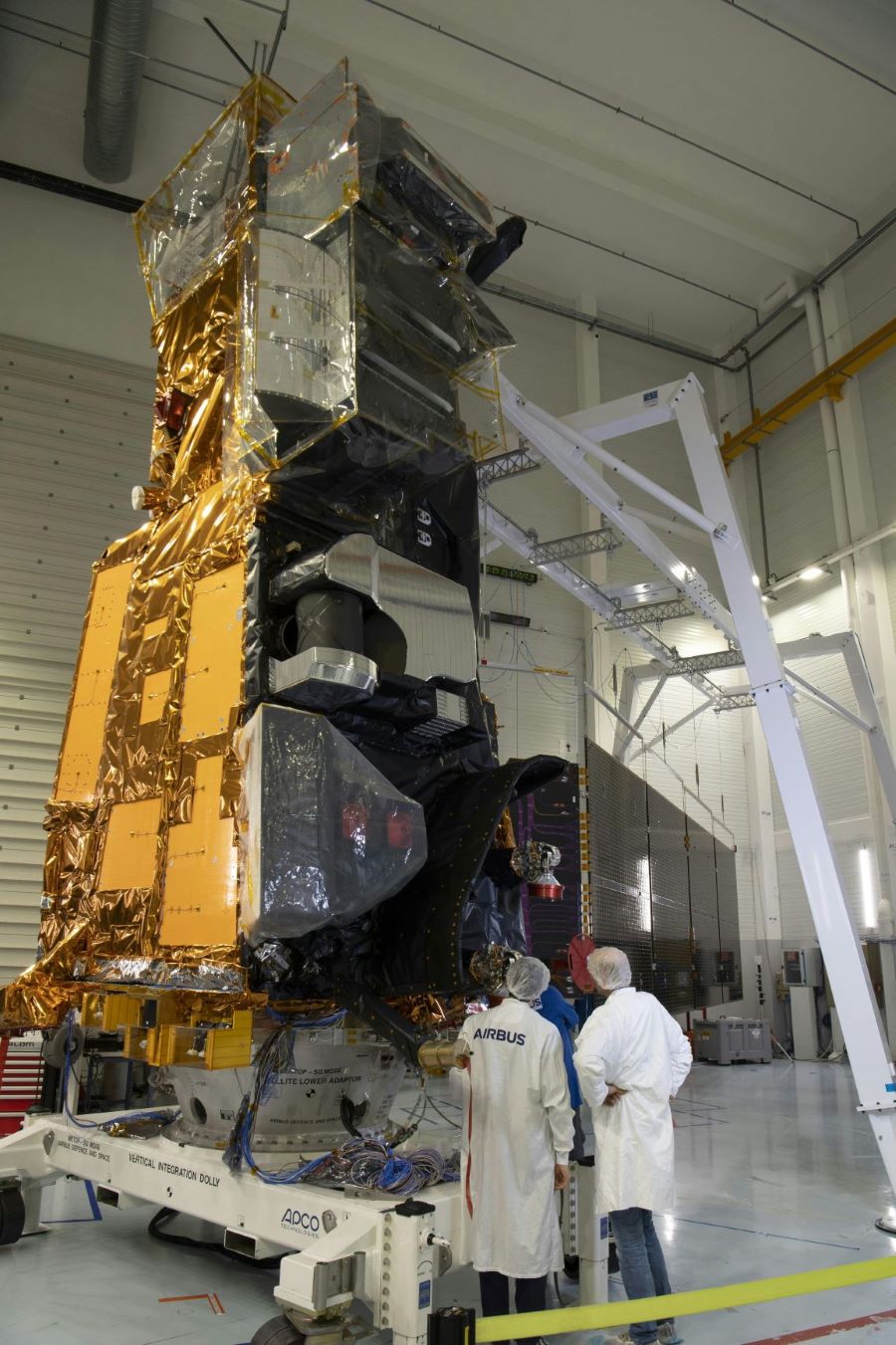

Airbus Defence and Space has delivered the first Sentinel-5 instrument for the European Space Agency (ESA) that will be integrated on MetOp Second Generation Satellite A.
