Jaltek installs most fully featured Takaya Flying Probe Test machine in the UK

Posted 11 March 2021 · Add Comment

Jaltek has invested in a Takaya APT-1400F Flying Probe Test machine from Accelonix Ltd., which will sit alongside Jaltek’s existing Flying Probe, further enhancing technical capacity and throughput.

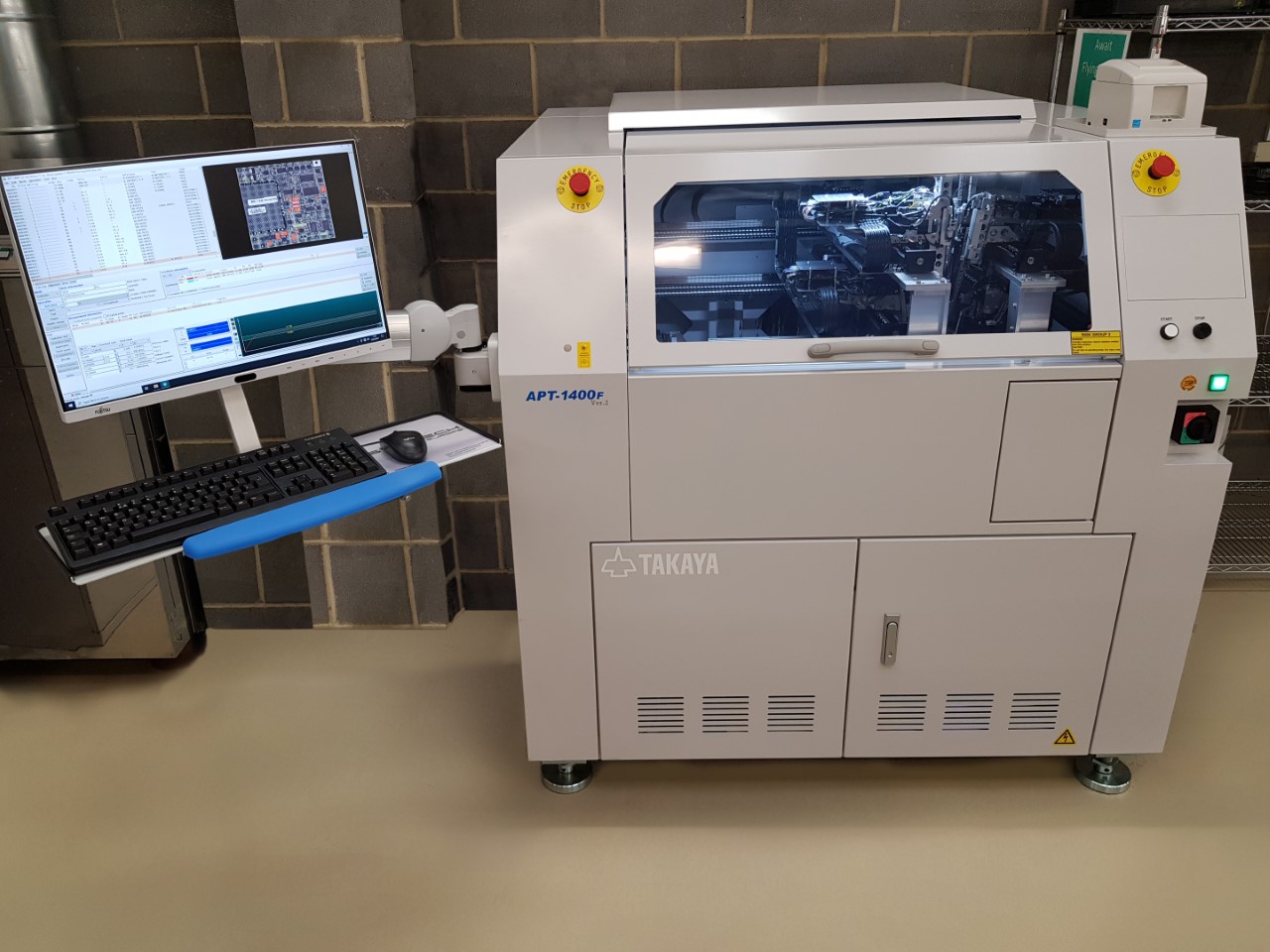

Image courtesy Jaltek

The Takaya APT-1400F is reported to be the fastest Flying Probe test system on the market, setting new standards for speed and test coverage with no compromise to quality and reliability.

The system has been specially developed for the test of large quantities of complex circuit boards. The APT-1400F has 6 flying probes, of which 2 are vertical, enabling access to contact points that could not previously be reached. The design of the XY table has been completely revised and adapted to the high travel speed of the test probes and an outstanding measurement unit and numerous innovative test algorithms enable significant increase of the test coverage on circuit boards.

The Takaya APT-1400F comes with a list of impressive features as standard, Jaltek also installed a number of additional functions making its performance in terms of test speed, positioning accuracy and coverage unprecedented in the UK.

David Mills, the Takaya service and support manager for Accelonix UK, remarked: "I have over 25 years experience working with Takaya flying probes and know every installation in the UK, Jaltek’s new Takaya APT-1400F is the most fully featured model of its kind in the whole of the UK! Amongst all the usual refinements that many of our customers go for,

Jaltek can also boast a number of additional features that will give even more value and flexibility to their customers."

Additional features include:
• Laser Measuring Unit - allows a single-sided tester to accurately measure component heights, to check for component compliance to IPC/customer requirements, BGS co-planarity to the PCB, or for non-fitted components.
• Net Signal Wave Analysis (NSW) - heralded as a “quantum leap” in flying probe testing of PCBAs, NSW technology characterises every net on a PCB into a unique signature which is used to compare against every board in the production batch.
Most effective on large-scale densely populated PCBAs with many nets, NSW offers not only 100% shorts detection between every net on a PCB, but also it achieves this in a fraction of the time it would take conventional methods.
• Power Relay Board - enables the connection of external test instruments to the
system, controlling the application of bespoke test signals onto the board to assist
in basic functional tests.
• Extended 80V DC Source/Measure Board - provides an additional 4-quadrant DC
source for powering boards under test up to 80V DC.
• Function Scanner Board - boosts the current capacity of the DC sources from 1Amp
to 2 Amps and allows integration of 3rd party boundary scan tools, either by wired
connectors or through the probes themselves. THIS creates vastly superior test
coverage through hybrid JTAG and flying probe test programs – able to test nets
that the probes cannot reach. JTAG can also be used to program firmware, test
memory integrity, and significantly reduce test times by verifying large parts of the
board faster than conventional flying probing.
• LED Colour/Intensity Measurement - a more common feature opted for on Takaya
flying probes, the two LED sensors can measure the colour wavelength and
brightness of LED devices on PCBAs, providing further defect detection over AOI
and ensures LED uniformity/conformity can be tested for – an important
requirement in applications such as medical and automotive sectors.

Commenting on the acquisition of this new Takaya machine Steve Pittom, Managing Director, said, ‘We continue our commitment to invest for our customers. This fully featured new flying probe will bring significant value to our customers particularly those who have AS9100 and ISO13485 requirementsas well as for new product introduction. We can’t wait to start putting it to the test."
