Sensitive dark matter detector comes to life

Posted 12 July 2022

The world’s largest and most sensitive dark matter experiment has come to life, moving closer to giving clues about one of the biggest mysteries of the universe, which has been supported by a talented British team funded by the Science and Technology Facilities Council (STFC).

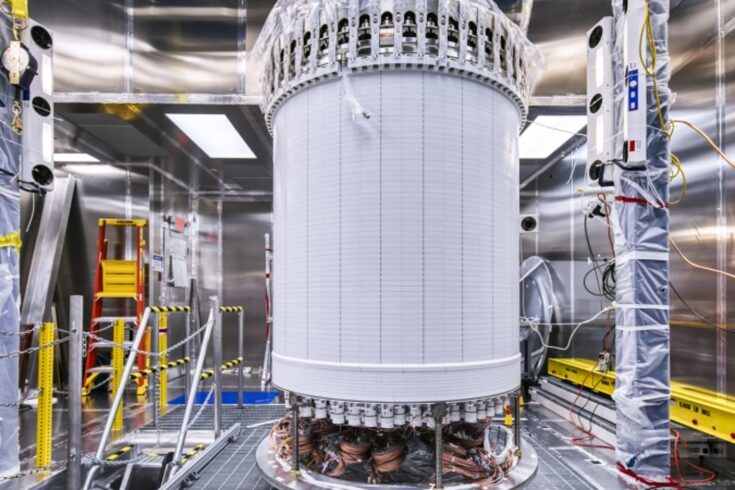

Above: The LZ Xenon Detector fully assembled at Sanford Underground Research Facility.
Courtesy UKRI STFC


The LUX-ZEPLIN Dark Matter Experiment (LZ), based at the Sanford Underground Research Facility in South Dakota, US, has gathered its first result, showing the experiment is successfully operating as designed.

The experiment now needs to run for up to 1,000 days to realise its full sensitivity. This initial result is just a fraction of that exposure, which validates the decade-long design and construction effort.

What is LUX-ZEPLIN?
LZ is intricately and innovatively designed to find direct evidence of dark matter; a mysterious invisible substance thought to make up most of the mass of the universe.

Dark matter is particularly challenging to detect, as it does not emit or absorb light or any other form of radiation.

The LZ detector will try to capture the very rare and very faint interactions between dark matter and its seven-tonne liquid xenon target. To do this, LZ must be carefully and delicately calibrated and any background noise removed so the experiment can be perfectly tuned to observe these interactions.

Today, the international project led by the Department of Energy’s (DOE) Lawrence Berkeley National Laboratory has announced the detector is running as hoped after years of careful set-up.
The world’s move sensitive dark matter detector

Professor Henrique Araújo, from Imperial College London, is the UK lead and co-lead for the development of the LZ Xenon Detector. He said: "An experiment of the scale and sensitivity of LZ can be unforgiving; the smallest design flaw may compromise the whole enterprise.

"And since the LZ cryostat cannot be opened underground, we needed to make sure we got it right the first time, much like if we were to launch LZ into space… Well, it looks like we did get it right."

The tests show that LZ already is the world’s most sensitive dark matter detector, with plans to collect about 20 times more data in the coming years.

After the successful start, full-scale observations can begin with the hope of finding the first direct evidence of dark matter.

The legacy of ZEPLIN
LZ involves an international team of 250 scientists and engineers from 35 institutions from the US, UK, Portugal and South Korea.

The UK team, funded by the Science and Technology Facilities Council (STFC), consists of more than 50 people from:

  • University of Bristol
  • University of Edinburgh
  • Imperial College London
  • University Liverpool
  • University of Oxford
  • Royal Holloway, University of London
  • University of Sheffield
  • University College London (UCL)
  • STFC’s Rutherford Appleton Laboratory.

Many of these UK groups came from the ZEPLIN programme, that developed the liquid xenon technology for dark matter searches at STFC’s Boulby Underground Laboratory.

The UK ZEPLIN groups then joined the Large Underground Xenon (LUX) experiment in the USA in 2012 and started designing LZ around that time.

Professor Araújo said: "It’s been a privilege to work in such a fantastic project, full of talented and fun people.

"The pioneering ZEPLIN programme lives on as the ‘Z’ in ‘LZ’, but we needed a much larger international team to achieve something on this scale."

The UK deliverables
UK deliverables to LZ included the ultralow background titanium cryostat, various contributions to the central Xenon Detector, two calibration sub-systems, and one of the two international Data Centres.

A significant fraction of the very large number of radioassays needed to identify the best materials was conducted in the UK (at STFC’s Boulby Underground Laboratory, and UCL).

LZ Spokesperson Professor Hugh Lippincott, from the University of California Santa Barbara, echoes the comment from Araújo: "Working across such large distances is always challenging, especially during COVID-19 when we were unable to gather in person.

"We probably had a few too many Zoom calls but it was great to see how well people were able to work together, with work passing back-and-forth across the ocean at the beginning and end of each day."

Hunting the dark matter
LZ is the largest and most sensitive experiment searching for dark matter particles, in particular weakly interacting massive particles (WIMPs).

These theorised elementary particles interact with gravity, which is how we know about the existence of dark matter in the first place,  and possibly through a new weak interaction too.

This means WIMPs are expected to collide with ordinary matter, albeit very rarely and very faintly. This is why very quiet and very sensitive particle detectors are needed for WIMP detection.

At the centre of the experiment is a large liquid xenon particle detector maintained at minus 100 degrees celcius, surrounded by photo-sensors. If a WIMP interacts with a xenon atom and produces even a tiny amount of light, the sensors will capture it.

However, in order to see these rare interactions, the team had to carefully remove all natural background radiation from the detector materials first. Yet this is not enough, which is why LZ is operating around a mile underground. This shields it from cosmic rays, which bombard experiments at the surface of the Earth.

The detector and its cryostat sit inside a huge water tank to protect the experiment from particles and radiation coming from the laboratory walls.

Finally, the team made sure that the liquid xenon itself is as pure as possible by carefully removing a key contaminant through a complex, years-long process.

Many complex systems had to come together for LZ to work and this first result shows they are performing in harmony seamlessly.

STFC’s Dark Matter Group Leader Pawel Majewski said: "It is gratifying to see the LZ experiment delivering its first scientific results.

"For the Rutherford Appleton Laboratory, one of the LZ founding members, it has been a privilege to be part of this wonderful endeavour bringing together scientists and engineers from all over the world.

"We look forward to seeing more exciting results with an anticipation of a significant discovery awaiting us in the years to come."
