Webb’s coolest instrument captures first star

Posted 9 May 2022 · Add Comment

The UK’s main contribution to the James Webb Space Telescope, the Mid-Infrared Instrument (MIRI), has now opened its eye to the sky.

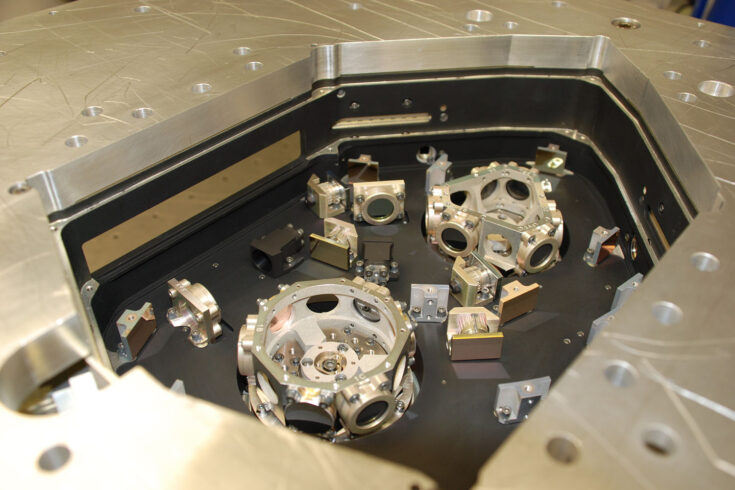

Above: MIRI components photographed in the South Building clean room facility prior to packing and shipping.
Courtesy UKRI

Professor Mark Thomson, STFC Executive Chair, said: "This is a remarkable achievement for the hardworking scientists and engineers who have worked tirelessly to get to this point. MIRI is an incredible feat of engineering.

"Watching MIRI come to life is inspiring, and is a testament to the talent of the UK teams involved."

MIRI receives light
NASA has confirmed that the telescope alignment is complete using the measurements from all four of the science instruments. This means MIRI is now receiving focused light from the telescope and taking astronomical images for the first time.

MIRI was the last instrument to become functional on Webb as it operates at lower temperatures than the other instruments, so had to be carefully cooled to 7 kelvin (-266 Celsius).

After confirming that the instrument systems were functional at this extremely cold temperature the MIRI cover was opened and the first data obtained.

MIRI does not make its own internal adjustments for focus or alignment. Instead it relies on the incredible accuracy of the Webb optical alignment and the high-precision assembly of MIRI optics by European partners.

As the only mid-infrared instrument on Webb, the MIRI optics are complicated to align because they have to provide four scientific functions in a small space:

  • imaging
  • low-resolution spectroscopy
  • medium-resolution integral-field spectroscopy
  • coronagraphy

The painstaking and long telescope alignment process was supported by scientists and engineers from the Science and Technology Facilities Council’s (STFC) UK Astronomy Technology Centre (UK ATC) and RAL Space. The process was also supported by a team of international MIRI partners.

David Lee, the MIRI lead optical engineer at the UK ATC said: "I was up until 01:00 with colleagues in France, talking to the Webb alignment team in the US, to support the analysis of MIRI’s alignment to the telescope.

"After working on MIRI for so many years it was great to finally reach this stage in the project and see that the images are well focused."

Mike Ressler, the MIRI Project Scientist at the Jet Propulsion Laboratory (JPL) said: "I was on shift as the first images arrived and had a friendly race with my European colleagues to see who could display them first. I lost the race, but was absolutely delighted with what I was seeing on their screens.

"To see those images together with my colleagues was immensely gratifying after so many years working in partnership."

This is a key milestone in Webb’s science mission as it means that all the instruments, including MIRI, are now able to take super sharp, sensitive astronomical images and spectra.

Observing the infrared universe
The European contribution is led by Professor Gillian Wright, Director of STFC’s UK ATC in Edinburgh, she said: "Another fantastic moment in MIRI’s amazing journey. The team is delighted that the coolest instrument on Webb is now also aligned to Webb’s mirrors and functioning.

"Using MIRI, we will be able to observe the infrared universe in a way that has never been possible before. There are still several months of detailed testing and calibration to go before we see the first science from MIRI, but this is tremendous news and a real achievement for the entire MIRI team."

Fantastic voyage
It was the first of Webb’s instruments to be delivered to NASA in 2012, where it was integrated into the larger telescope with continuous testing at every stage.

Webb launched on board ESA’s Ariane 5 rocket from French Guiana on Christmas Day 2021. It then spent a month travelling through space before reaching its new home in orbit one million miles from Earth.

The commissioning team have spent the intervening weeks working on aligning the 18 mirror segments and cooling down the scientific instruments.

Scientists and engineers from STFC’s UK ATC and RAL Space are actively involved in the complex commissioning process. Working alongside international colleagues at the Space Telescope Science Institute in Baltimore, they monitor and command MIRI and Webb in shifts, 24 hours a day.

MIRI can see at longer wavelengths than the other instruments on Webb, and is capable of peering through the dust clouds that surround newly formed stars and planets.

By looking at infrared radiation, the Webb instruments including MIRI can effectively look back billions of years in time to study the very beginnings of the universe.

MIRI is one of four scientific instruments on Webb, the largest most powerful telescope ever launched into space.

Webb’s mission to explore the universe is led by:

  • NASA
  • the European Space Agency (ESA)
  • the Canadian Space Agency.

International collaboration
MIRI is an international project that was designed, built and tested by a European consortium of ten member countries, led by the UK in partnership with NASA JPL.

To enable MIRI to take images required a truly international effort. The spectrometer channel requires light coming from input optics developed in Belgium entering UK ATC-built image slicers and pre-optics, feeding into a spectrometer developed in the Netherlands and landing on a US detector.

Similarly the imager channel is fed light from the same input optics, with light going into camera optics developed in France.

Inside the camera there is a filter wheel mechanism, that was developed in Germany. This precisely places into the beam a selection of colour filters, masks for the coronagraphs, or a prism for low resolution spectroscopy. Finally the light arrives perfectly in focus at another US provided detector.

All of that light has arrived in position, in focus.

All of MIRI is held correctly in position relative to the telescope by a thermally isolating hexapod developed in Denmark. Although it is an engineering image for the telescope alignment, these first measurements have also provided the MIRI team with some preliminary information about the flight instrument.

The MIRI development has been funded by the UK Space Agency and STFC, part of UK Research and Innovation (UKRI) and ESA.

Caroline Harper, Head of Space Science at the UK Space Agency, said: "MIRI and the other instruments on Webb will revolutionise our understanding of the universe. This is due to the skills, expertise and dedication of scientists and engineers from across the UK, which will put British science at the forefront of the exciting new discoveries set to be made by Webb over the next decade."

Over the next few months each instrument will undergo final calibration. MIRI’s systems will be tested, data will be analysed and final adjustments will be made before we see the first spectacular images of the cosmos from Webb this summer.
